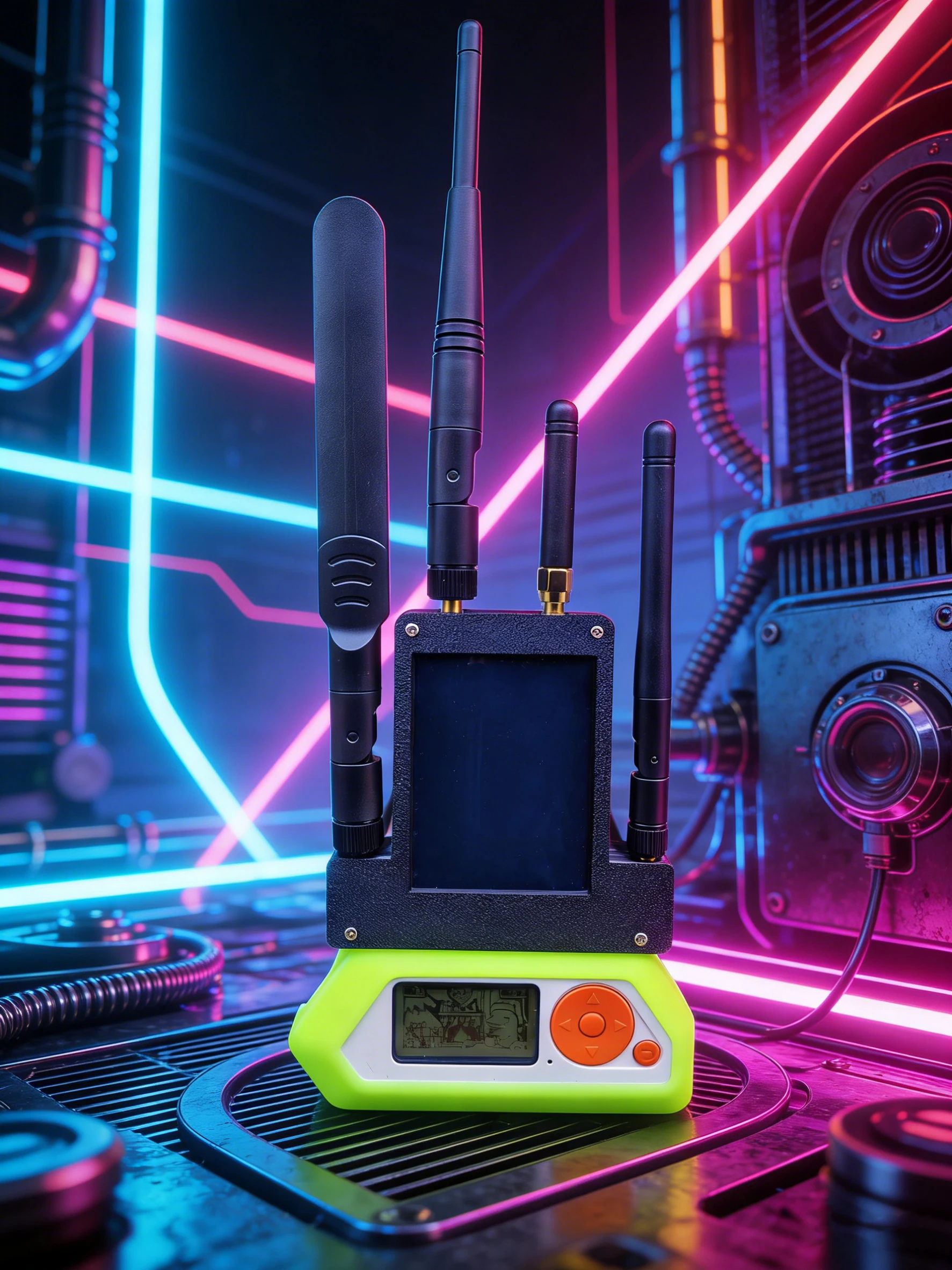

Flipper Zero Marauder 5G Version External Module Kit 433MHz RF ESP32C5 GPS Modules with 2.8-inch Screen for Signal/Data Analysis

The Double Barrel 5G includes two independent Marauder systems. The first is a standalone Marauder kit that can operate without Flipper Zero. The second system, based on the ESP32-C5, is controlled by Flipper Zero and is capable of handling 5G Wi-Fi operations. In addition, the unit also features onboard GPS and Sub-GHz support.

ESP32 Marauder is a linear system/firmware that can perform only one task at a time. This limitation is the core reason behind the Double Barrel design. By running two Marauder systems simultaneously, one can deauth a network with one Marauder while performing a different task with the second Marauder.

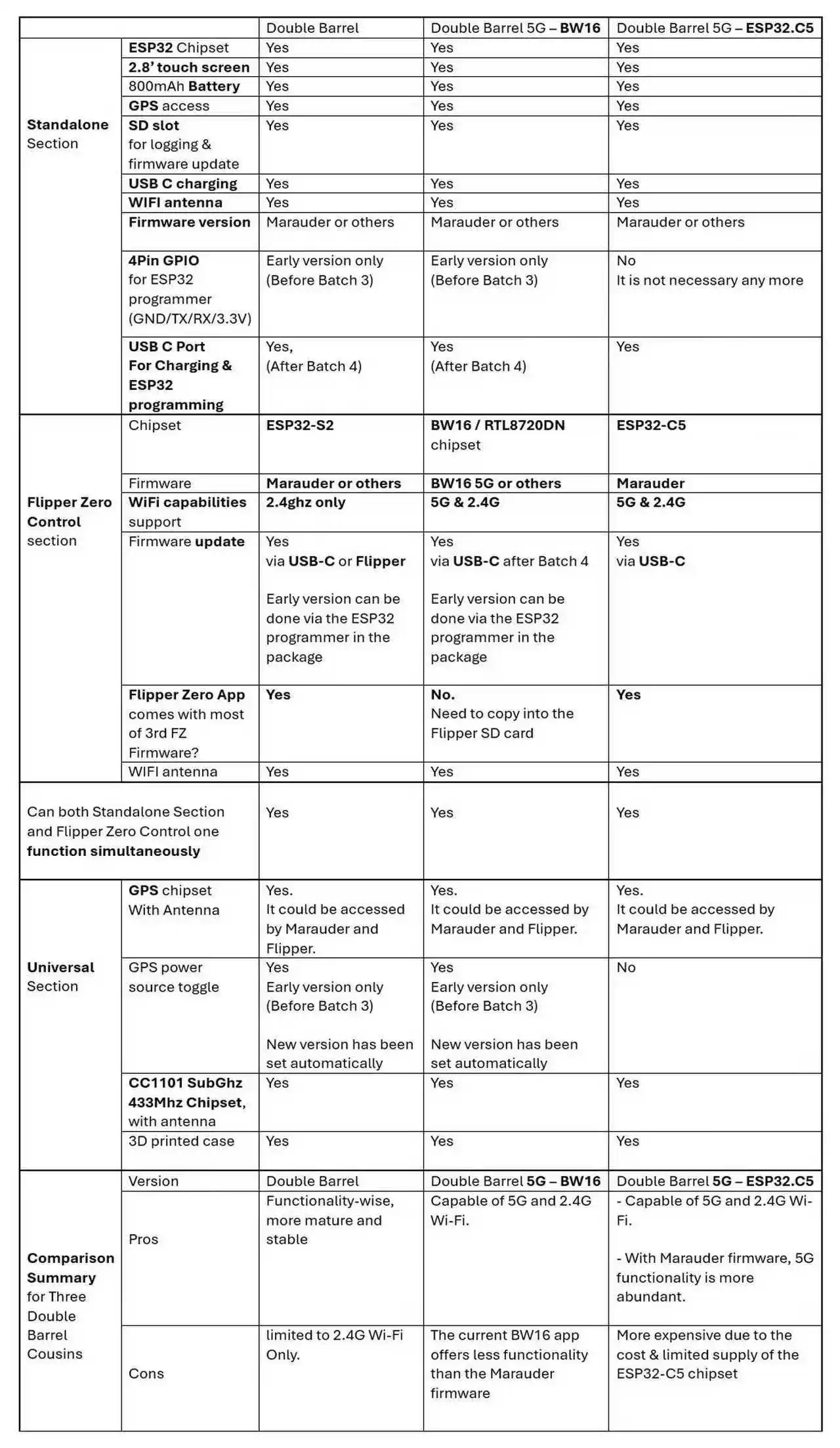

For more technical details, please refer to the images in the detail pictures and the user manual included with the product.

The Standalone Marauder comes with
-ESP32 chipset with an external antenna, - A 2.8-inch touch screen, - An 800mAh embedded battery,
-Onboard GPS access - Micro SD card slot, for updating firmware and data storage (Port C) - USB-C port for charging and alternatively way for firmware update (Top / Position A) - This part of the device can function as a standalone device (i.e., you can use it without Flipper Zero). - The hardware version of this marauder is V6

The ESP32-C5 chipset is controlled by the Flipper Zero, it comes with
-ESP32-C5 chipset with an external antenna - Dual-Band 5Ghz + 2.4Ghz scanning, de-authentication, on multiple networks simultaneously, recommending on maximum 2 networks at the same time for optimal performance.
-USB-C for firmware update. (Left / Port B) - Micro SD card slot, for data storage (Port D) - This part of the Double Barrel is connected and controlled by Flipper Zero - Marauder firmware version is ESP32-C5

The second part of the Marauder and 5G unit (BW16 or ESP32-C5) can work simultaneously. CC1101 chipset (433MHz).
GPS chipset. Both Marauder and Flipper can obtain GPS data.
Four antennas: 2 for Wi-Fi (dual Marauder), with twice the original gain at 6dB; 1 for GPS, with 1dB gain; 1 for the SubGhz 433MHz band, with 3dB gain.

Highlights & Features
Battery Capacity: 800mAh
All pins are gold-plated, and each signal pin is equipped with a TVS diode.
WiFi antennas: stronger than those currently on the market, 2 pieces of 6dB, 16cm–19.5cm (the supplied WiFi antennas are dual-band, no need to distinguish frequencies).
GPS antenna: 20dBi.
433MHz antenna: 3dBi.
All antennas use SMA male connectors.

Package Included:

- 1 x Flipper Zero External Module Kit
- 2 x WiFi 2.4G/5G Antenna: 6dB (16cm–19.5cm)
- 1 x GPS antenna: 20dB
- 1 x 433MHz antenna: 3dB
- 1 x SD Card For firmware flashing, system storage, etc.
