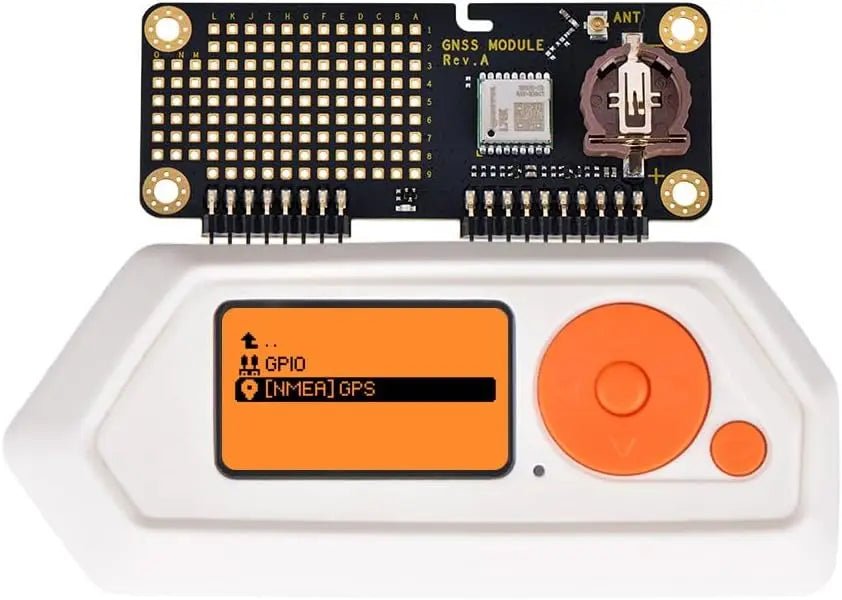

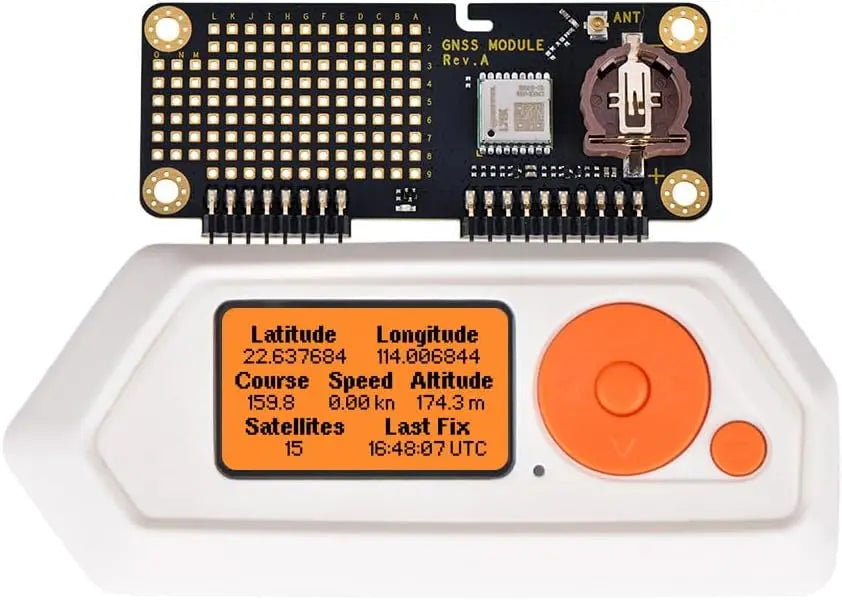

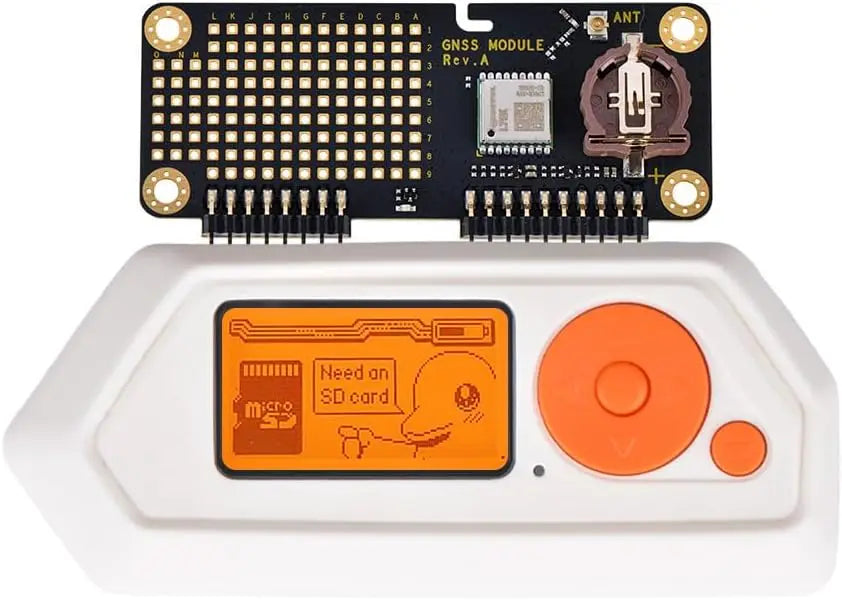

GNSS Module Receiver for Flipper Zero,Supports GPS, BeiDou (BDS), GLONASS and QZSS Systems, with Active GNSS Antenna
-Plug-and-Play module designed specially for Flipper Zero.
-Support Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS;Support AGNSS;Support NMEA 0183 standard protocol and CASIC proprietary protocol.
-Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity;Built-in SAW Filter for enhanced noise reduction performance.
-UART communication baud rate: 4800~115200bps (9600bps by default).
-Green LED for indicating the 1PPS output on fix;Pre-soldered CR1220 coin cell holder.

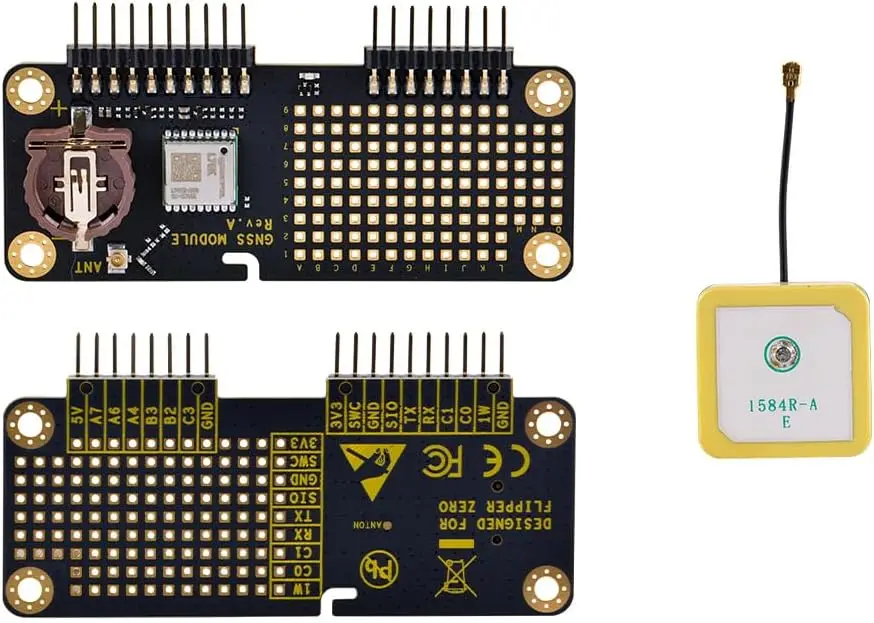

-Package list: 1x GNSS Module for Flipper Zero; 1x High-performance active GNSS antenna(support GPS L1 C/A, BDS B1 and GLONASS L1 bands).
GNSS Module for Flipper Zero is a Plug-and-Play Multi-GNSS (Global Navigation Satellite System) module designed specially for Flipper Zero, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning.
It also supports AGNSS function, built-in low-noise amplifier and sound surface filter, and provides a good positioning experience of fast, accurate, high-performance.

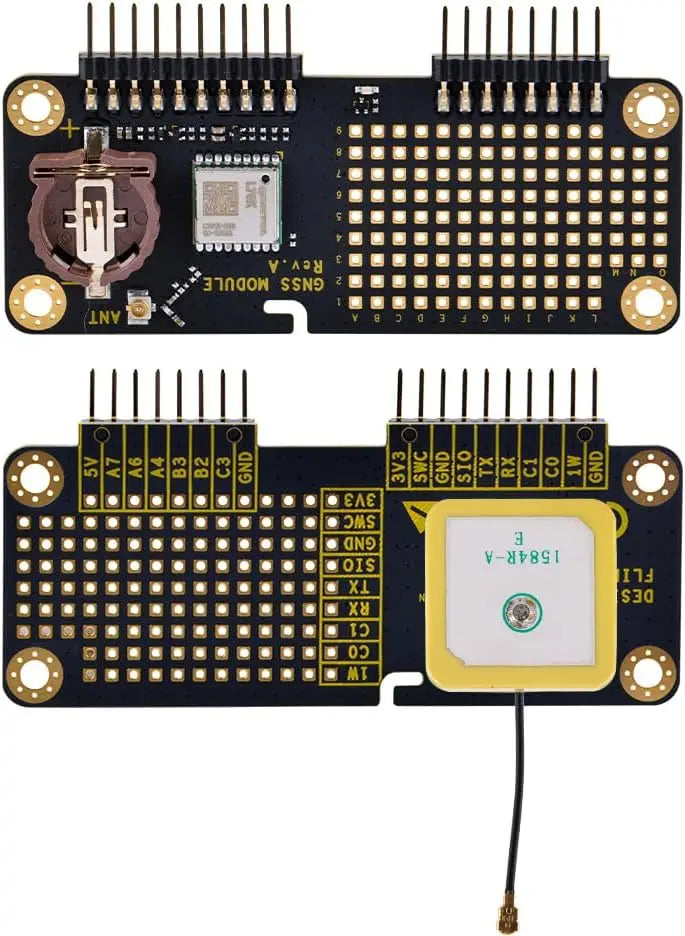

The module comes with a high-performance active GNSS antenna intended to cover GPS L1 C/A, BDS B1 and GLONASS L1 bands.

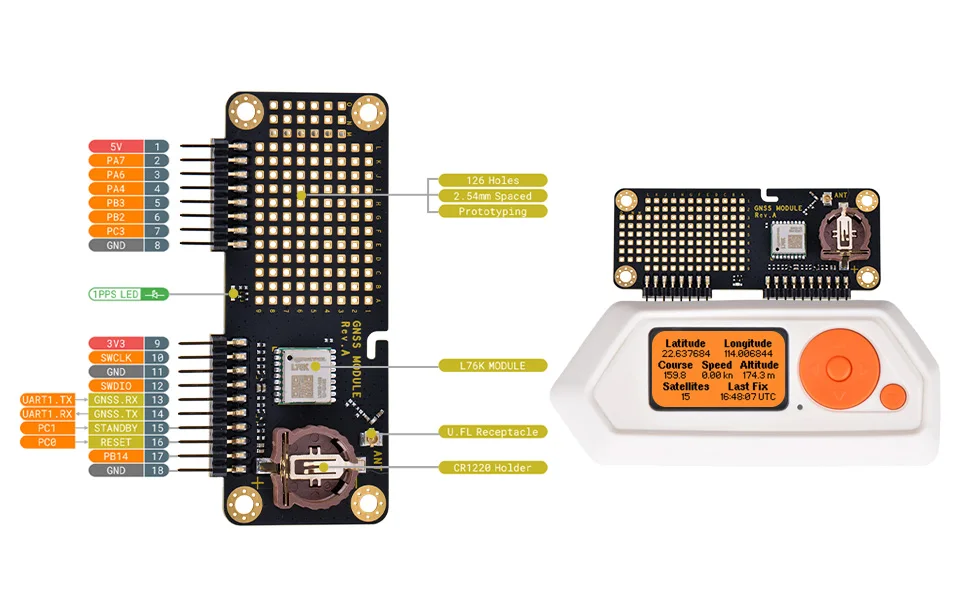

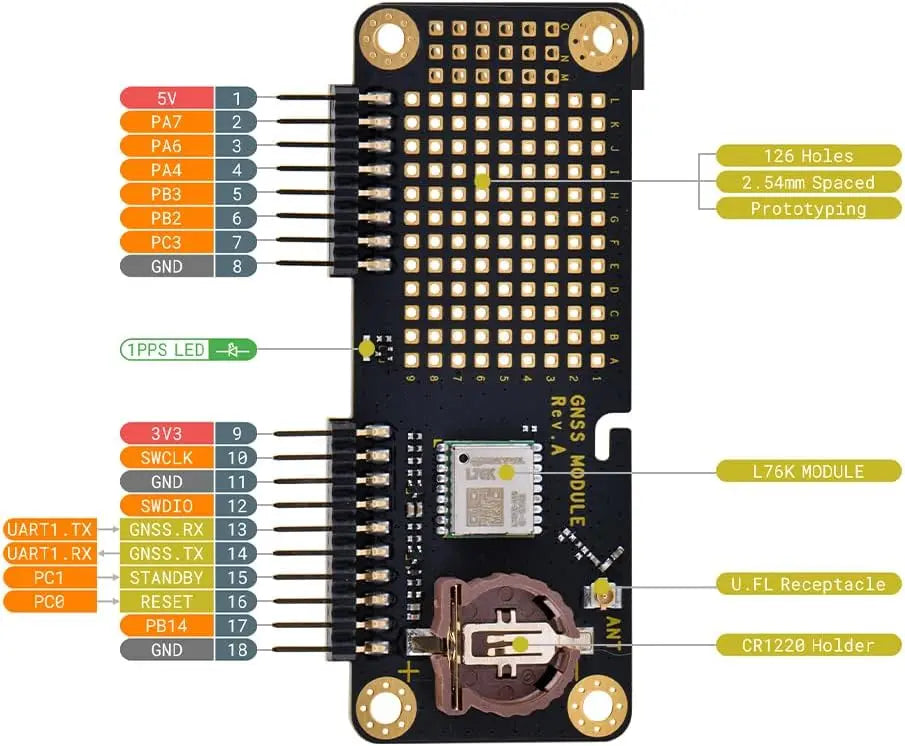

The design also has a tiny bright green LED for indicating the 1PPS output on fix, a pre-soldered CR1220 coin cell holder to keep the RTC running and allow warm starts, and 126 2.54mm-spaced holes for attaching your custom circuits

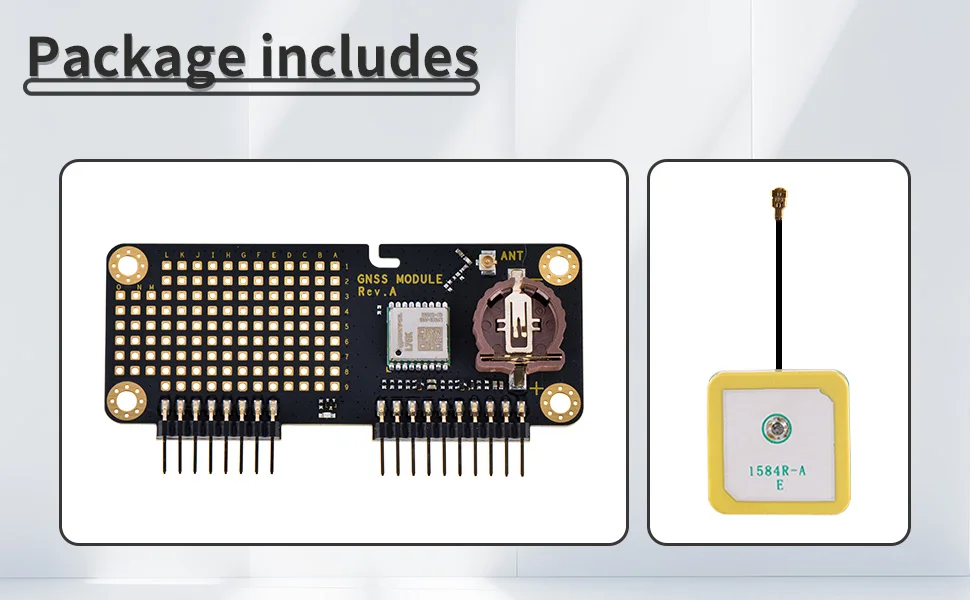

Package list:
1x GNSS Module for Flipper Zero
1x High-performance active GNSS antenna
